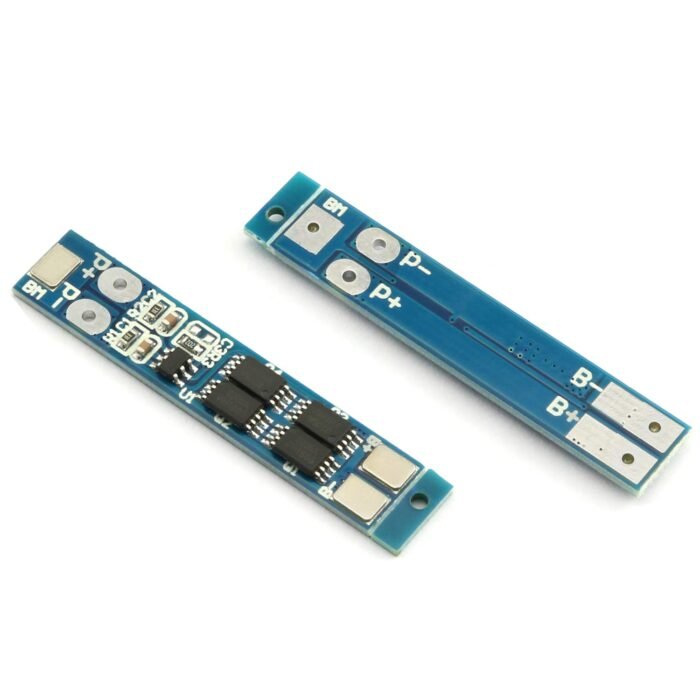

A battery management system (BMS) is an electronic regulator that monitors and controls the charging and discharging of rechargeable batteries. Battery BMS protection boards are the brains behind battery packs. 2S 8A BMS manages the output, charging, and discharging and also provides critical safeguards to protect the batteries from damage. 18650 protection circuit Board is a high-accuracy voltage detection circuit. The 8A protection board can not be used for lithium-ion batteries. Specifications Of 2S 8A 7.4V BMS Lithium-ion Battery protection circuit Board: Model: HX-2S-A10 Charging voltage: 8.4V-9V Over-discharge voltage range: 2.5-3.0v±0.05v Overcharge voltage range: 4.25-4.35v±0.05v Upper limit working current: 8A Upper limit instantaneous current: 10A Working temperature: -40— 50 °C Storage conditions: -40– 80 ° C Quiescent current: less than 10uA Effective life: more than 50,000 hours Internal resistance: less than 300mΩ Short circuit protection: protection, disconnect load delay self-recovery Solder join Size: 40*17*3.5mm Features Of 2S 8A 7.4V BMS Protection Circuit Board For 18650 Lithium Battery: A high-accuracy voltage detection circuit. 2 series 7.4V lithium battery. A terminal of the charger using a high voltage device. Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit). MOS transistor can control the battery charge and discharge. low standby current consumption. Soldering Point Instruction: B : connected to the battery positive. B -: connected to the battery negative. MB: Connect the connection point between battery 1 and battery 2. P : charge / discharge positive (charge / discharge common). P -: charge / discharge negative (charge / discharge common). Package Include: 1 x 2S 7.4V 8A BMS PCB Battery Protection Board For 18650 Li-ion Lithium-Ion Battery In Pakistan
