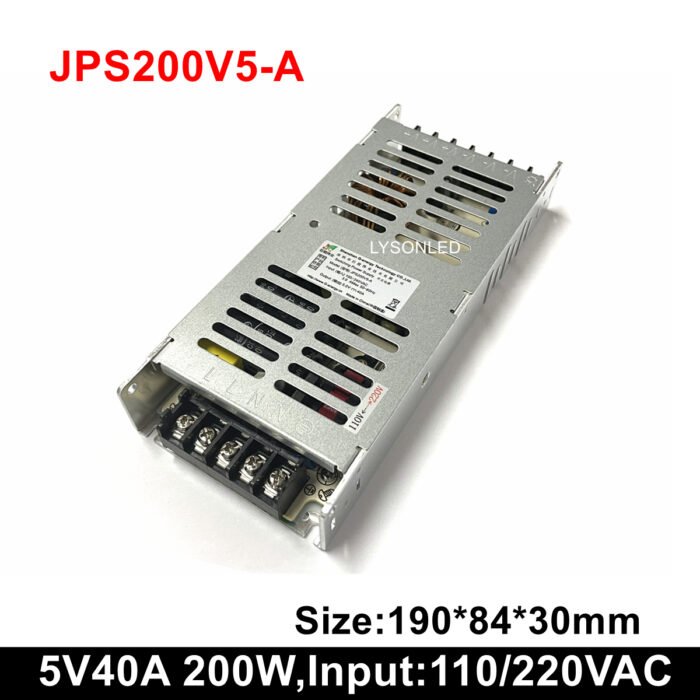

Input voltage:200-240Vac, 47-63Hz Output power:200W Power factor:0.50@230Vac Insulation voltage: I/P-O/P:3.0KVac;I/P-FG: font-size: 15px;”>Leakage current:0.30mA@230Vac font-size: 15px;”>Protection function: input under voltage, overload, short circuit Working temperature: -30~ 60 Safety standards:GB4943,EN60950 The cooling way: from the cold Size:190X84X30 – Low cost ,high reliablity, strong load capability – Built-in EMI filter – Low output ripple & noise – Ultrathin, Small, Make the LED display – Thinner and less weight – Protections: Over Load/Short Circuit – 100% full load high temperature burn-in test – Input ports , connect 200-230V electronic L = Positive N = Negative ,rest one connect ground wire – Output ports , connect 5V power line( for modules and controller) V = Positive V- = Negative – Normally one set 200w switch power supply can control 4-6pcs module
