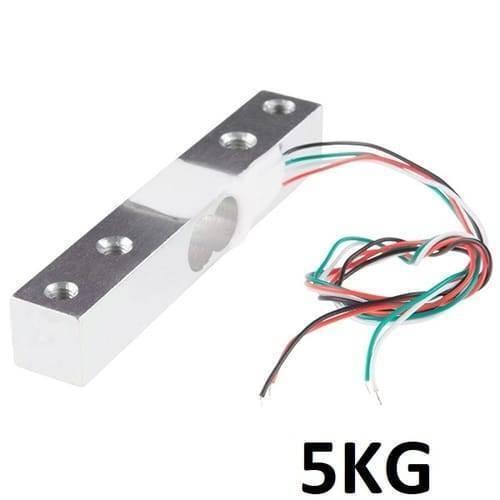

Description The electronic weighing machine uses a load cell to measure the load or pressure produced by the load, here most load cells are following the method of a strain gauge, Which converts the pressure (force) into an electrical signal, these load cells have four strain gauges that are hooked up in a Wheatstone bridge formation. When we apply load to the strain gauge resistance will change and hence the output voltage from the load cell get changes by the way we can measure the load value. Features And Specifications Of YZC-133 5kg Kitchen Scale Electronic Load Cell Weighing Sensor: Model: YZC-133 Rated Load: 5 (kg) Recommended Operating Voltage: 5 VDC Maximum operating voltage: 10 VDC Material: Aluminum Dimensions: 80mmx13mm Rated output: 1.0 0.15mV / V Nonlinear: 0.03% F.S Hysteresis: 0.03% F.S Reputability: 0.03% F.S Creep (5 minutes): 0.05% F.S Temperature Effect on Output: 0.003% F.S / C Temperature Effect on Zero: 0.02% F.S / C Zero Balance: 0.1000 mV / V Input impedance: 1066 20% Output impedance: 1000 10% Insulation resistance: 2000 M Operating temperature range: -20 ~ 65 C Protection: IP65 Cable: 0.8 135 cm Table size: 160 160 mm SKU: LC-5KG Category: Uncategorized
