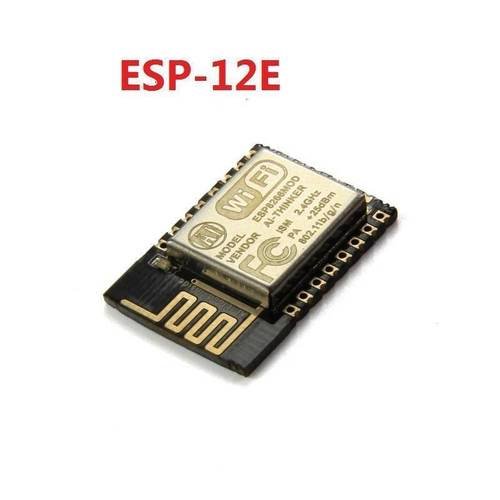

The Latest ESP-12E ESP8266 Wifi Module AP & Station Remote Serial Wireless IoT Board is an integrated chip designed for the needs of a new connected world. It can handle all the necessary overhead for communicating with your network, such as TCP/IP stack and communicating with your 802.11 networks. It is completely addressable over SPI and UART protocols allowing you to connect your sensors or project directly to it through its GPIO’s. ESP8266 is a low-cost Wi-Fi chip with full TCP/IP stack and MCU (Micro Controller Unit) capability. Specification of ESP-12 ESP8266-12e Wifi Module Wireless IoT Board Module: Compatible with ESP-12（ESP-202） Communication interface voltage: 3.3V Working current: 240mA(MAX) Serial port baud rate: 115200 (default), can be modified to other values by AT command Serial communication format: 8N1 IO Port Package: Both SMD and Inline package are available, and the pin pitch is 2.0mm. Antenna Type: Built-in PCB antenna is available Wireless Network Mode: station / softAP / SoftAP station Wireless criteria: 802.11 b / g / n WIFI @ 2.4 GHz, support for WPA / WPA2 security mode It is very easy to develop projects with AT commands Surface Mount Package with 2mm Pitch Pads Mulitple GPIO’s for all your sensor needs Wi-Fi Direct (P2P), soft-AP Integrated TCP/IP protocol stack Integrated TR switch, balun, LNA, power amplifier and matching network Integrated PLL, regulators, DCXO and power management units 19.5dBm output power Power down leakage current of <10uA Integrated low power 32-bit CPU could be used as an application processor SDIO 1.1/2.0, SPI, UART STBC, 1×1 MIMO, 2×1 MIMO A-MPDU & A-MSDU aggregation & 0.4ms guard interval Wake up and transmit packets in < 2ms Standby power consumption of < 1.0mW (DTIM3) Dimensions: 25 x 17 x 4 (LxWxH) mm Weight: 2 gm. Package Include: 1 x ESP-12 ESP8266-12e Wifi Module Wireless IoT Board Module In Pakistan
