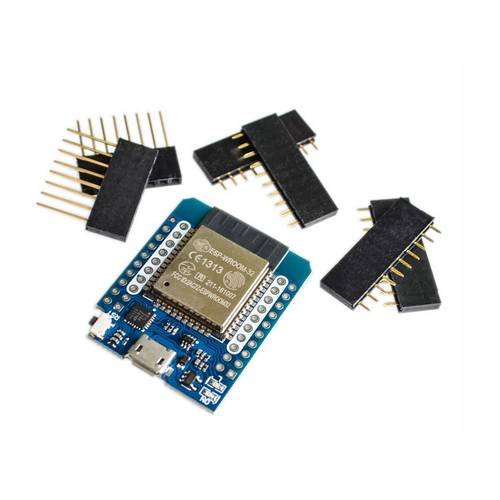

MH-ET Live ESP32 Mini Development Board Wifi Bluetooth IoT Development Board. This is ESP32 WiFi-BT-BLE MCU Module. ESP WROOM 32 is a powerful, generic WiFi-BT-BLE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding. At the core of this module is the ESP32 chip, which is designed to be scalable and adaptive. There are 2 CPU cores that can be individually controlled or powered, and the clock frequency is adjustable from 80 MHz to 240 MHz. Specification of ESP32 Mini Development Board Wifi Bluetooth Iot Development Board: Current – Receiving: 80 mA. Voltage – Supply: 2.2 V ~ 3.6 V. Current – Transmitting: 80 mA. Data Rate: 54 Mbps. Frequency: 2.4 GHz. Mounting Type: Surface Mount. Operating Temperature: -40°C ~ 85°C. Power – Output: 16.5dBm. Protocol: 802.11b/g/n/d/e/i. RF Family/Standard: WiFi. Sensitivity: -98dBm. Serial Interfaces: I²C, I²S, SPI, UART. Integrated 520 KB SRAM. Hybrid Wi-FI & Bluetooth. High level of integration. Ultra-low-power management. 4 MB Flash. On-board PCB antenna. Package Include: 1 x ESP32 Mini Development Board Wifi Bluetooth Iot Development Board In Pakistan
