Digital LED Display Programmable Circuit Egg Incubator Timer Relay Module Controller WS16 In Pakistan
$ 1.78
- Categories: Vallejo Metal Color, Apparel, Pos Printers, All Brands, Cuttlefish Colors

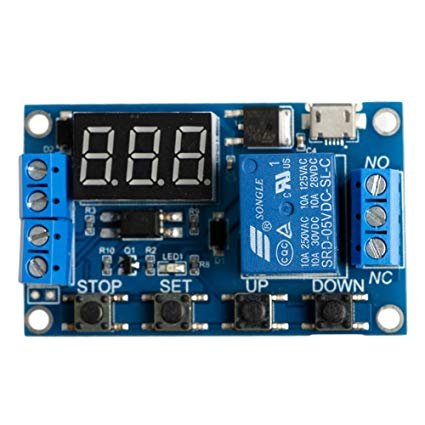

- Digital Incubator Timer Relay is a timer relay suitable for your incubator and other time-related projects. The timer relay module is a Digital display Led Home Automation Delay Timer Control Switch Module Timer Controller, Operating voltage: 6-30V, support micro USB 5.0V power supply, Output capability: Can control the device within DC 30V 5A or AC 220V 5A. This best incubator timer controller can be applied to many fields; there is a wide range of applications. Programmable Triggered Timing Circuit board 35238mp. Features Of 35238mp HW-521 Circuit Incubator Egg Turner Timer Relay Switch Control Module: Wide voltage power supply (6 ~ 30V), supports micro USB 5.0V power supply, easy to use; The interface is clean, simple, powerful, and easy to understand, can meet almost all your needs; With emergency stop function (“STOP” button) and reverse polarity protection which can avoid burning by reverse connection. Adding sleeping mode, when the mode is enabled, if there is no operation within 5 minutes, the display will be turned off automatically, press any button will wake it up; You can set different parameters of OP, CL, LOP, which are independent of each other and are stored separately; All the parameter settings will be stored automatically when power is off. Specifications Of Timer circuit Incubator Egg turner 6-30V Relay Module Switch Trigger Time Circuit Timer Cycle Adjustable: Operating voltage: 6-30V, support micro USB 5.0V power supply Trigger signal source: Active-high (3.0V-24V), have optocoupler isolation, can improve the system’s anti-jamming capability (customers can also short common ground). Output capability: Can control the device within DC 30V 5A or AC 220V 5A. Quiescent current: 20mA; Operating current: 50mA Service life: more than 10 million times Working temperature: -40°c ~ 85 °c Dimension: 62×38×17mm. With optocoupler isolation, enhanced anti-jamming capability, industrial-grade board. The parameter setting will be stored forever when power is off. Special Note: The output of the replay is passive contact, without voltage output, just for controlling the on or off of a single circuit. Timing range 0.1 seconds (min.) to 999 minutes (max.) continuously adjustable How do choose the time range? After setting the parameter values in the mode selection interface, you can choose the timing range by short pressing the “STOP” button; XXX. the decimal point is in the unit digit, timing range: 1 second to 999 seconds. XX. X decimal point is in the tens digit, timing range: 0.1 seconds to 99.9 seconds X. X. X. decimal all light on, timing range: 1 minute to 999 minutes. For example, if you want to set the “OP” time to 3.2 seconds, you can move the decimal point to the place of tens digit, the digital display 03.2 Package Includes: 1 x Digital LED Display Programmable Circuit Egg Incubator Timer Relay Module Controller WS16 In Pakistan
