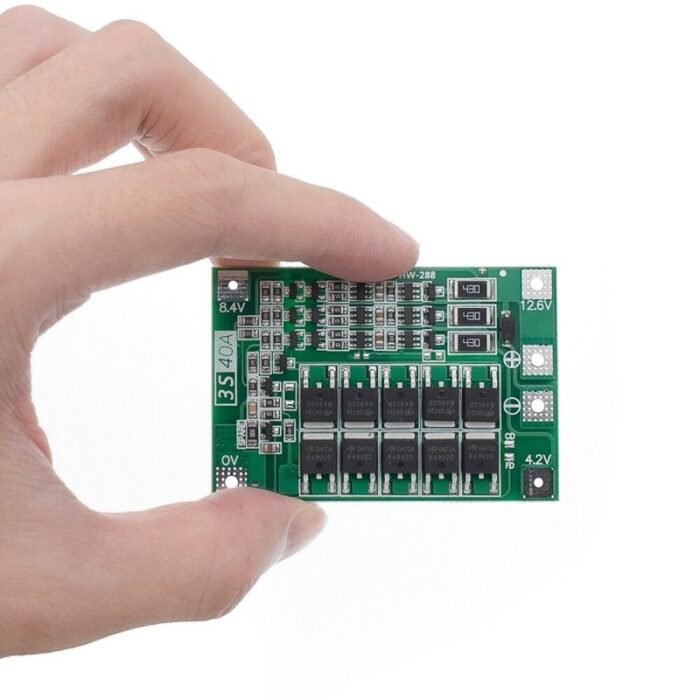

The 3 Series 40A 18650 Lithium Battery Protection Board 11.1V 12.6V with Balance for Drill Motor Lipo Cell Module comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube. It provides a continuous discharge of 40A, 100mA balanced current, for electric drill/sprayer/LED lights/low power inverter. (if the cooling environment is not good, please reduce the load current use).The Scope of Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, a polymer lithium battery) where Charging voltage can be range between 16.8V to 18.1V The board operates smoothly with Continuous charge current of (upper limit): 20A. The balanced version is suitable for starting current below 80A, power 135W below the drill (with balance). Specification of 3S 40A BMS 11.1V 12.6V 18650 Lithium Battery Protection Board With Balancing Feature: Battery:3 Cell Overcharge detection voltage (V):4.25 ± 0.025 Over-discharge detection voltage (V):2.50 ± 0.08 Over current Protection (A):40 Working current (A):20 Operating Temperature (°C):-40 ~ 85 Length (mm):60 Width (mm):41 Height (mm):3.5 Features of 3S 40A BMS For 12.6V 18650 Lithium Battery Protection Board: 3S 11.1V 12.6V 40A 18650 lithium battery protection board (comes with recovery function-AUTO Recovery). Application: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650.26650, a polymer lithium battery). Continuous discharge current (upper limit): 40A (if the cooling environment is not good, please reduce the load current use). Continuous charge current (upper limit): 20A. Suitable for the drills with starting current below 80A, power 135W below. Package Includes: 1 x 3S 40A BMS 11.1V 12.6V 18650 Lithium Battery Protection Board with 100mA Balancing Feature in Pakistan
