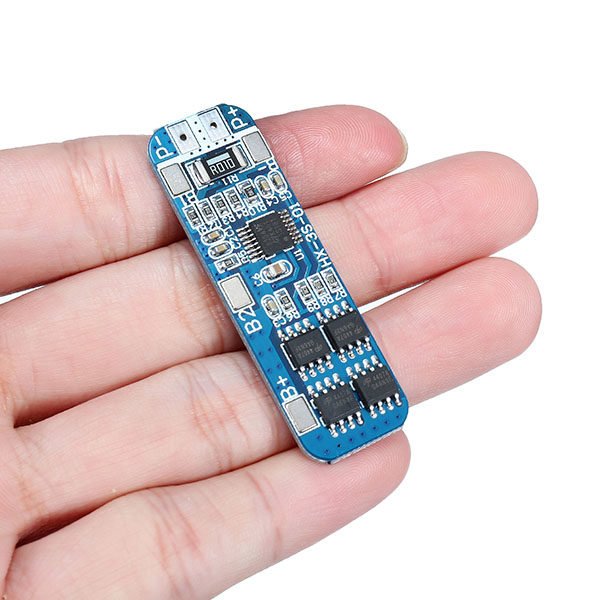

Battery Charger Protection Board is a 3S 10A board. Lithium Batteries BMS with 10.8V rated voltage for polymer battery, 11.1V 18650, or 3.7V lithium battery rated voltage and 12.6V lithium battery can be charged. And discharge 10A (referring to the maximum discharge current limit) Lithium battery protection board it also comes with over-charge, over-discharge, over-current, short circuit protection. A battery pack built together with a battery management system with an external communication data bus is a smart battery pack. A smart battery pack must be charged by a smart battery charger. Specifications of 3S 10A 18650 Li-ion Lithium BMS PCM Battery Charger Protection Board: Model: HX-3S-01 Size: 50 * 16 * 1.0mm Current at rest: less than 6uA Useful life: more than 30,000 hours Short circuit protection: protection, self-recovery delay. Input voltage: 12.6V Over-charge voltage range: 4.25-4.35v ± 0.05v Over-discharge voltage range: 2.3-3.0v ± 0.05v Maximum operating current: 5-8A Overload voltage range: 4.25-4.35 v 0.05 v Overpressure voltage range: 2.3-3.0 v 0.05 v Maximum instantaneous current: 9-10A Operating temperature: -40 — 50 ℃ Storage conditions: -40 — 80 ℃ Quiescent current: less than 6uA Internal resistance: less than 60mΩ Package Includes: 1 x HX-3S-1 Lithium Battery 3S 12V 10A Charge Protection Board BMS PCM for 18650 Li-ion Cells Charging in Pakistan
