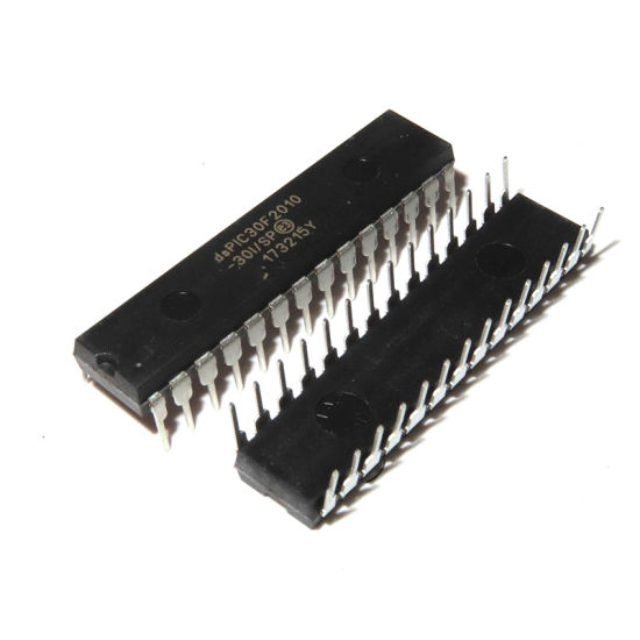

Original Inverter IC DSPIC30F2010 Microcontroller Price in Pakistan
$ 2.75
- Categories: Vallejo Metal Color, Apparel, Pos Printers, All Brands, Cuttlefish Colors
- What Is the dsPIC30F2010? The dsPIC30F2010 is a 16-bit digital signal controller (DSC) designed by Microchip Technology. It combines the features of a microcontroller with the processing capabilities of a digital signal processor (DSP). Here’s what you need to know: Modified Harvard Architecture: The dsPIC30F2010 follows a modified Harvard architecture, which allows for efficient execution of instructions. High Performance: With a maximum operating frequency of 20 MIPS (million instructions per second), this microcontroller can handle complex tasks. Rich Peripheral Set: It features high-current I/O pins, timers, SPI modules, I2C support, UART modules, and more. Motor Control PWM Module: Ideal for motor control applications, it offers various output modes and dead-time control. Key Features and Specifications: Instruction Set: 24-bit wide instructions, 16-bit wide data path. DSP Engine: Built-in DSP capabilities for math-intensive operations. Accumulators: Two 40-bit wide accumulators with optional saturation logic. Addressing Modes: Supports modulo and bit-reversed addressing. Timers: Pair up 16-bit timers into 32-bit timer modules. SPI and I2C: Communication interfaces for connecting to other devices. Motor Control PWM: Efficiently control motors with various modes and dead-time control. Additional Technical Details: Modified Harvard Architecture: The dsPIC30F2010 employs a modified Harvard architecture, combining the best of both Harvard and Von Neumann architectures. This design ensures efficient instruction execution and separate program and data memory spaces. C Compiler-Optimized Instruction Set: The microcontroller’s instruction set is optimized for efficient compilation using C language, making it developer-friendly. DSP Engine: The built-in DSP engine provides hardware support for math-intensive operations, including multiply-accumulate (MAC) instructions. Accumulators and Multipliers: The dsPIC30F2010 boasts two 40-bit wide accumulators, allowing for precise arithmetic calculations. Additionally, its 17-bit x 17-bit single-cycle hardware fractional/integer multiplier accelerates DSP tasks. Addressing Modes: Choose between modulo and bit-reversed addressing modes to suit your application requirements. High-Current I/O Pins: The microcontroller features high-current sink/source I/O pins, capable of handling 25 mA each. Timers and Communication Interfaces: Pair up 16-bit timers into 32-bit timer modules for precise timing. Use the 3-wire SPI™ modules (supporting 4 Frame modes) and the I2C™ module (with Multi-Master/Slave mode and 7-bit/10-bit addressing) for seamless communication. Motor Control PWM Module: This module offers complementary or independent output modes, edge and center-aligned modes, multiple-duty cycle generators, and dead-time control. It’s perfect for motor control applications. Why Choose the dsPIC30F2010? Versatility: Whether you’re working on robotics, automation, or industrial control, this microcontroller can handle it all. Efficiency: Its optimized instruction set ensures efficient execution of code. Reliability: Microchip’s reputation for quality ensures a reliable and robust solution. Applications: Motor Control: Drive motors in robotics, drones, or industrial machinery. Sensor Interfaces: Read data from sensors and process it in real time. Embedded Systems: Create custom controllers for specific tasks. Audio Processing: Implement audio filters, equalizers, and effects. Get Started with the dsPIC30F2010: Hardware Setup: Connect the microcontroller to your development board or custom circuit. Software Development: Use Microchip’s MPLAB X IDE and XC16 compiler to write and compile your code. Explore Examples: Microchip provides code examples and libraries to kick-start your projects. Test and Debug: Use breakpoints and watch variables to ensure correct functionality. Integrate: Incorporate the dsPIC30F2010 into your larger system. Conclusion: The dsPIC30F2010 Microcontroller is a versatile and powerful solution for your embedded projects. Whether you’re a hobbyist, student, or professional, its rich feature set and reliability make it an excellent choice. Explore its capabilities and unlock new possibilities today! Package Include: 1 x Inverter IC Original DSPIC30F2010 IC Microcontroller IC With Software In Pakistan
