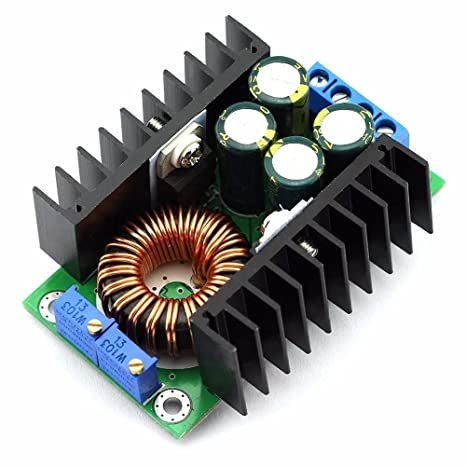

The DC-DC Step-Down 9A XL4016 voltage converter has the function of delivering a constant output voltage lower than the input voltage against variations in the input or load voltage. It supports output currents of up to 9A, input voltage between 8V to 40V and output voltage between 1.25V to 36V. The output voltage is selected by a multiturn potentiometer. Specification of CC-CV XL4016 9A DC To DC Adjustable Buck Converter: Material: PCB board and electronic component Input voltage: 5-40V Output voltage: 1.2-35V (continuously adjustable) Output Current: 8A Constant current range:0.2-8A ( adjustable ) Maximum Eficiency : 95% Load Regulation : 1% Voltage Regulation: 1% Output Power: Maximum power is about 280W (power tube temperature exceeds 65°C please add cooling fan) Short circuit protection: No (Please installs the fuse or protection circuit at input parts). Input Reverse protection: No (please comply with a reverse protection or connect a diode at input parts.) The temperature of the step up Module should not exceed 80C Size: Approx. 2.55*1.88*0.94inch / 6.5*4.8*2.4cm(Length*width*thickness) Package Include: 1 x CC-CV XL4016 9A DC To DC Adjustable Buck Converter In Pakistan
