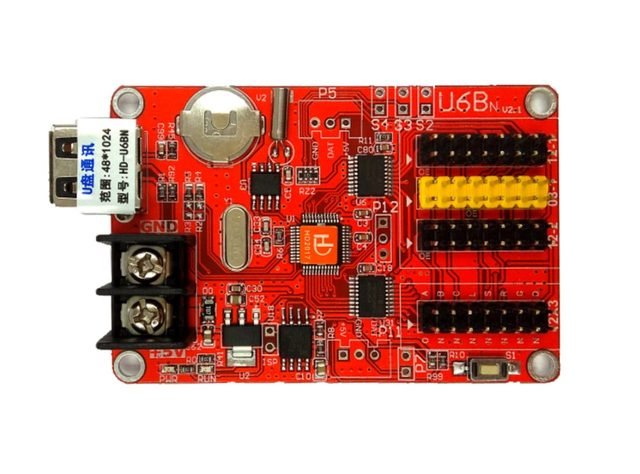

For signage, store, outdoor advertising and other information display, HUIDU technology launched our U-disk series control card, for updates the display programs by the USB port. U6BN is a U-disk series control card, through the USB port to update the program. Cost-effective, simple software to operate, better and rich display effect, supported variety of monochrome display. Application software: HD2016. ○1 ：Power connector, connect 5V power supply; ○2 ：USB ports Updated program by U-disk； ○3 ：Test button, click to switch screen test status； ○4 ：3 HUB12,1HUB08 connect the display； ○5 ：S3, connect the point switch, switch the previous program, timer reset, count down; ○6 ：S4, connect the point switch, program control, time-out, count reset; ○7 ：S2, connect the point switch, switch the next program, the timer starts, count plus; ○8 ：P5, connect temperature / humidity sensor; ○9 ：P7, connect the brightness sensor; ○10 ：P11, connected to the infrared receiver, with the remote control. Types of control card: Single Color/ Dual Color Control range: Single color: 320W * 48H Dual-colour: 160W * 32H Scan modes: Static, 1/2、 1/3、,1/4、 1/5 、1/6、1/8、1/16 common modes etc Communication type: U-Disk Power supply: 4.2－5.5V Power consumption: ≤0.5W Work environment: -20℃–75℃ Installation dimension: 57（W）*35 （H）（mm） Application Range: Used indoor-outdoor, semi-outdoor, Led Pharmacy Cross signs Showing text, animation, time, clock etc Languages Support: All languages Application Software: Software HD2016
